How do I connect to a DICOM or a Remote server?

To connect to a DICOM server or a Remote server, you need to add a client node to Onis. You can do it from the database window or from the preference panel.

From the Database window:

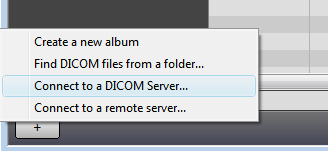

1. Click the '+' button at the right bottom of the database window.
2. Choose the type of server that you want to connect to (DICOM or Remote)

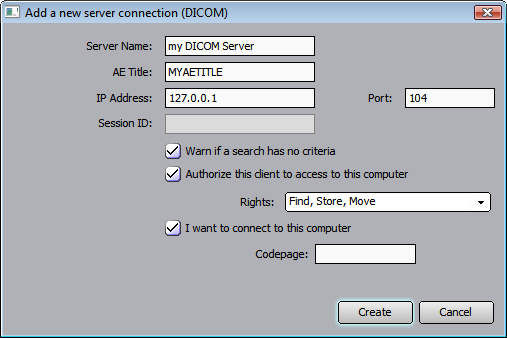

3. Define the Server name (something more friendly than the AE Title), the AE Title, the IP address of the server, its port number.






4. Define the other settings properly:

  • "Warn if a search has no criteria": when you will browse the server for studies, it may take a very long time if you didn't specify any criteria in your request (the server may contains hundred of thousand of studies). Check on this option if you would like to have a warning message to appear when such situation may come.
  • "Authorize this client to access to this computer": check on this option if the server is authorized to connect to your computer. Generally, for a DICOM server, you need to check on this option. When importing images from a DICOM server, a new connection will be initiate by the DICOM server to Onis. If this option is checked off, the new connection will failed and the images will not be imported. You need also to check on this option to authorize modalities to silently store their images to your local database. If you authorize the client to connect to your computer, you can precise which rights this client have:
    • Find: the client will be allowed to process some query request on Onis (i.e. Onis will respond to study browsing requests from this client). This allows the client to know which studies and series are stored in Onis database.
    • Move: the client is allowed to retrieve some studies, series or images from Onis (using the CMOVE or CGET DICOM protocol if the client is a DICOM node)
    • Store: the client is allowed to store some studies, series or images to Onis. This right is mandatory if you want to be able to import images from this client.
  • "I want to connect to this computer": typically, you need to check this option on when you want to browse studies that are contained in the server database. For modalities that will only silently store images to your local database, you should check this option off. When checked on, a new node will be created in the database page that you can select to browse studies.
  • "Code page": you can set the default code page which should be used to communicate with the client. Onis has been designed to be language independent. Onis store all its data in a Unicode format. To communicate with a PACS Workstation, Onis need to know which language is used by this workstation to communicate properly. If Onis and the workstation "speak" the same language, you don't need to define this parameter and the default code page will be the one used by the operating system. If you need to define this parameter, you can know the right code page to use in the "Regional and Language Options" of your operating system.
    "Session ID": some servers (like the remote server) can define a session ID for security reason (only client that knows this session ID can be connected to the server). You can specify the session ID here.

5. Click the "Create" button.

If the "I want to connect to this computer" was checked on, a new node will be created in the source list. You can select this node to browse the client studies.



From the preference panel:

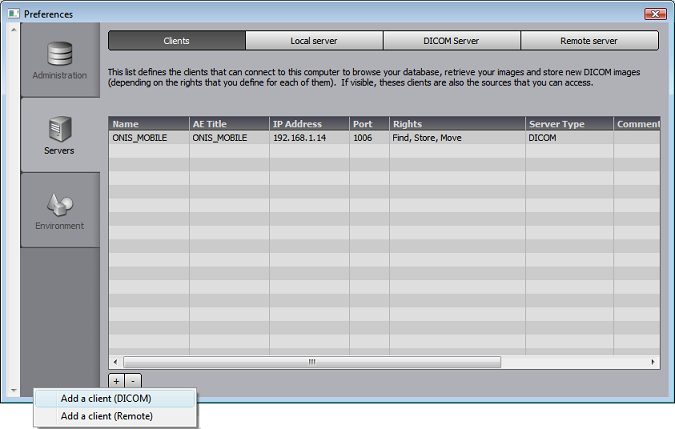

1. Open the preference panel (click on the "Preferences" button in the database page)
2. Select the "Servers" category
3. Select the "Clients" page
4. Click the "+" button
5. In the combo box, choose the type of server that you want to connect to (DICOM or Remote)






6. Define the Server name (something more friendly than the AE Title), the AE Title, the IP address of the server, its port number.






7. Define the other settings properly:

  • "Warn if a search has no criteria": when you will browse the server for studies, it may take a very long time if you didn't specify any criteria in your request (the server may contains hundred of thousand of studies). Check on this option if you would like to have a warning message to appear when such situation may come.
  • "Authorize this client to access to this computer": check on this option if the server is authorized to connect to your computer. Generally, for a DICOM server, you need to check on this option. When importing images from a DICOM server, a new connection will be initiate by the DICOM server to Onis. If this option is checked off, the new connection will failed and the images will not be imported. You need also to check on this option to authorize modalities to silently store their images to your local database. If you authorize the client to connect to your computer, you can precise which rights this client have:
    • Find: the client will be allowed to process some query request on Onis (i.e. Onis will respond to study browsing requests from this client). This allows the client to know which studies and series are stored in Onis database.
    • Move: the client is allowed to retrieve some studies, series or images from Onis (using the CMOVE or CGET DICOM protocol if the client is a DICOM node)
    • Store: the client is allowed to store some studies, series or images to Onis. This right is mandatory if you want to be able to import images from this client.
  • "I want to connect to this computer": typically, you need to check this option on when you want to browse studies that are contained in the server database. For modalities that will only silently store images to your local database, you should check off this option. When checked on, a new node will be created in the database page that you can select to browse studies.
  • "Code page": you can set the default code page which should be used to communicate with the client. Onis has been designed to be language independent. Onis store all its data in a Unicode format. To communicate with a PACS Workstation, Onis need to know which language is used by this workstation to communicate properly. If Onis and the workstation "speak" the same language, you don’t need to define this parameter and the default code page will be the one used by the operating system. If you need to define this parameter, you can know the right code page to use in the "Regional and Language Options" of your operating system.
  • "Session ID": some servers (like the remote server) can define a session ID for security reason (only client that knows this session ID can be connected to the server). You can specify the session ID here.

8. Click the "Create" button.

If the "I want to connect to this computer" was checked on, a new node will be created in the source list. You can select this node to browse the client studies.
